Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk

Shenzhen Topview Display Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk

  • 1
  • 2
  • 3
  • 4
  • 5

Brand Name : Topview

Model Number : TP-3001

Certification : CE,FCC,ROSH,C-TICK

Place of Origin : GuangDong,CN

Contact Now

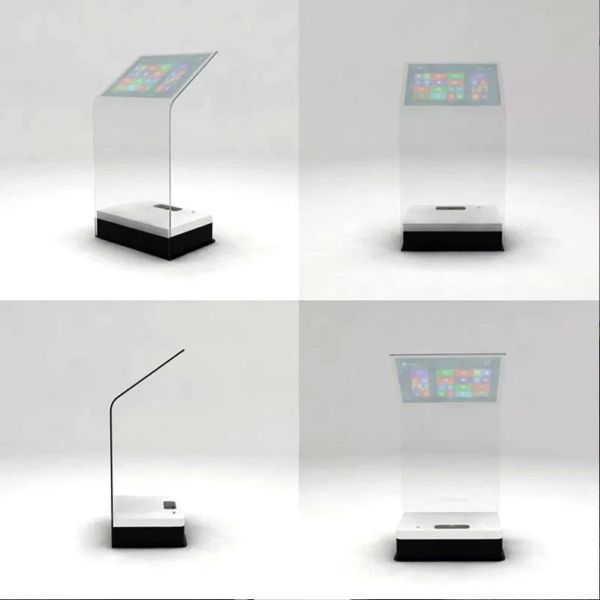

Exhibition holo Terminal Projection Transparent glass interactive Touch foil Kiosk

information touch screen kiosk for Conference

multi-touch touch screen foil

transparent glass touch kisok

in multi-touch touch screen foil under Explosion-proof glass

Main Features

Unique design

Tempered glass to the main parts of kiosk

High quality 30inch touch foil film with transparent rear projection film

Mini projector for image displaying

Multi touch operation

Various application

Worldwide certificate approval, such as RoHS, CE, and FCC

Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk
Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk
Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk
Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk
Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk
Exhibition Holo Terminal Projection Transparent Lcd Screen Glass Interactive Touch Foil Kiosk

Specifications

Ø Touch foil film (there is no gap between kiosk frame and TFT LCD monitor)

Items Touch Foil Film Specifications
Touch type Projected capacitive touch
Typical feature Touch through tempered glass
Touch points Multi 2points (30inch only)
Accuracy 1mm
Sensor 56 sensor to multi 2points
Light transmittance Over 95%
Scanning speed 16ms
Output solution 4096X4096
Safe distance At least 3mm (between TFT LCD and touch foil)
Life span 7-9 years

Ø PC configurations (it can be changed per the demand of clients)

Items PC Configurations
CPU I3-3220
Mother board Asus H61
Memory DDR3 4GB
Hard disk SATA 500GB
Graphic card Integrated HD graphic card
Audio card Integrated Realtek ALC889 8 channels
Network card 1000M Realtek RTL8111E
Speaker Sony origin 2X10w loud speaker
Interfaces HDMI, USB
Operating System Windows 8 (trial English version)

Ø Projector

Items Projector Configurations
Brand name ASK-S2280
Type Short focus
Brightness 2800lumens
Contrast 3500:1
Standard resolution XGA (1024*768)
Projection aspect 82inch@1meter
Input interfaces 1XS-Video, 1Xcompenent, 1XVideo, 2XVGA, 1XAudio (Mini-Jack), 1XRS232
Output interfaces 1XVGA, 1XAudio (Mini-Jack)
Voltage AC 100-240V, 50-60Hz

Ø Kiosk

Items Kiosk Specifications
Material 8-12mm glass
Voltage input AC 110V – 240V
Power plug America standard, Europe standard
Work temperature 0°C to 40°C
Storage temperature -20°C to 60°C
Humidity 20%-80%

Application:

1. Business organizations: Supermarket, Shopping mall, Hotel, Restaurant, Pharmacy
2.Non-profit organizations: Airport, Railway / bus station, Exhibition, Museum, Hospital, School, Convention center, Lottery station, Government affairs center
3.Financial organizations: Bank, Insurance company, Foundation, Security company
4.Entertainments: Movie theater, Club, Bar, Salon, Gambling house
